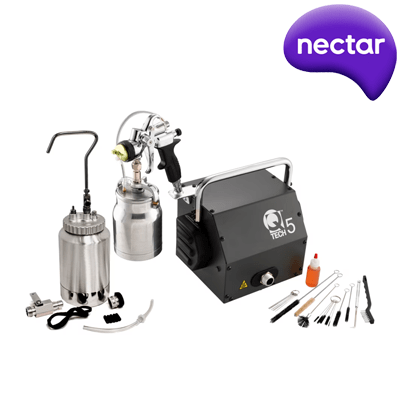

QTech 5 HVLP Turbine + Pressure Pot Assembly
Description
• Premium HVLP turbine manufactured for QTech in North America
• Stainless steel needle/nozzle 0.8 mm - 2.5 mm with a 1.5mm needle/nozzle as standard fitment
• Fan size fully adjustable from one control on side of gun - select from circle to wide pattern or anywhere in-between
• Non-bleed spray gun - air only passes through the gun when the trigger is pulled
• Quick change filters
• MWP: 0.66 bar | 9.5 psi
• Motor: 1600 watt
• Weight: 14.80 kg
• Suction cup: 1 ltr
• Pressure pot: 2 ltr
• Power supply: 110 / 240 volt
• Complete with: QTech Q70 HVLP suction gun, 1.5mm needle/nozzle, 7.5m hose assembly + 2m whip, Viscosity cup, Wrench | Wet film gauge, 19pc cleaning & maintenance kit & Pressure pot assembly kit
Technical/Safety Info.
| Product Type | Spray/Gun |
| Suitable Surface | N/A |
| General No. of Coats | 1 |
The QTech warranty
Lifetime motor warranty The motor is warranted to the original purchaser only under normal use and service against manufacturing and material defects for the product lifetime. Exceptions to this are the replacement of the brushes and issues related to normal wear and tear.
Lifetime drivetrain warranty The drivetrain is warranted to the original purchaser only under normal use and service against manufacturing and material defects for the product lifetime. Exceptions to this are the replacement of the bearing housing, connecting rod and clutch surface.
1-year piston & packings warranty Only available when registered by the original purchaser within 3-months of purchase (see below for details). Should the piston and/or packings need replacing within one year of the original purchase this will be carried out at a QTech approved service centre at no cost to the purchaser. This is limited to a one-time change only within the warranty period.
2 + 1-year other parts & workmanship warranty Outside of what is listed in the ‘Lifetime Motor Warranty’, ‘Lifetime Gearhead Warranty’ and the ‘1-Year Piston & Packings Warranty’ QTech airless sprayers are warranted under normal use and service against manufacturing defects for two years (extended to three years if registered by the original purchaser within 3-months of purchase) from the date of original purchase. This includes the frame, the control box and associated componentry and all other parts not specifically listed. Wearing parts that are not covered by this warranty are the piston, packings and prime valve
